Description
FEATURES OF SGC-1T ELECTRIC MINI CRANE WITH ROPE HOIST 1000 KG 30 METER ROPE WINCH:-
- Quickened the turnover and the operation of loading and unloading.
- High working efficiency, compact frame,
- Calm movement, comfortable operation, safety, and reliable.
- Especially suitable for the workshop, factory, plant, material handling in warehouses, metal industry, and any other open yard fields.
- Designed according to your request.

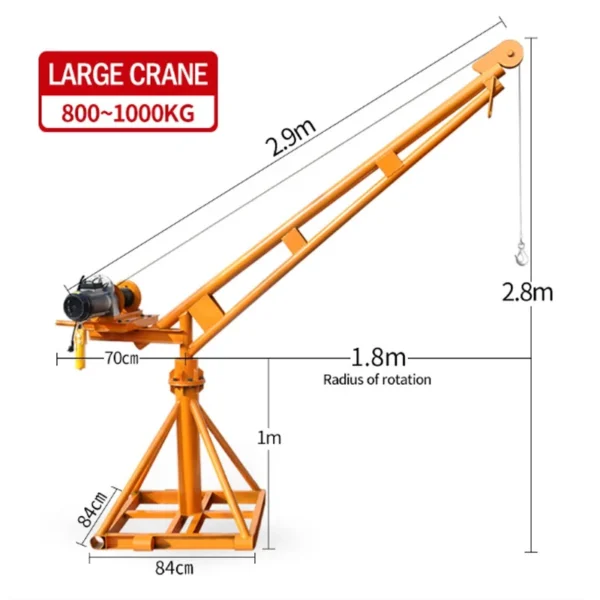

SPECIFICATIONS OF SGC-1T ELECTRIC MINI CRANE WITH ROPE HOIST 1000 KG 30 METER ROPE WINCH:-
- Model: SGC-1T
- Capacity: 1000kg
- Motor Power: 3000W
- Maximum Lifting Height: 12m
- Chain Falls: 1
- Color: Yellow
- Key Words: Mini Truck Crane, Mini Pick up Crane
- Boom Height: 1.1m-2.2m
- Wire Rope Diameter: 8mm
- Base: (300 X 300)mm
- Optional: Electric Winch, Electric Hoist, Hand Winch
- Type: Hydraulic Mini Crane or Manual Mini Crane
- Net Weight of Crane: 59kg
- Transport Package: Carton, Plastic Bag
- Brand: SUJA GLOBAL
- Origin: Singapore, Assemble in China
DESCRIPTION OF SGC-1T ELECTRIC MINI CRANE WITH ROPE HOIST 1000 KG 30 METER ROPE WINCH:-
- This type can be rotated for 360 degrees which can solve the problems of the rope twisting and difficulty in rotation during the work.
- The winching part changes the disadvantage of the short lifespan of the turbine reducer to make the electromagnetic braking motor much more powerful.
- The electricity type is designed with the clutch device to win the fast speed when falling down to improve efficiency.
- The most important is that the rotation part is installed with the automatic positioning device which will be much more safe.
